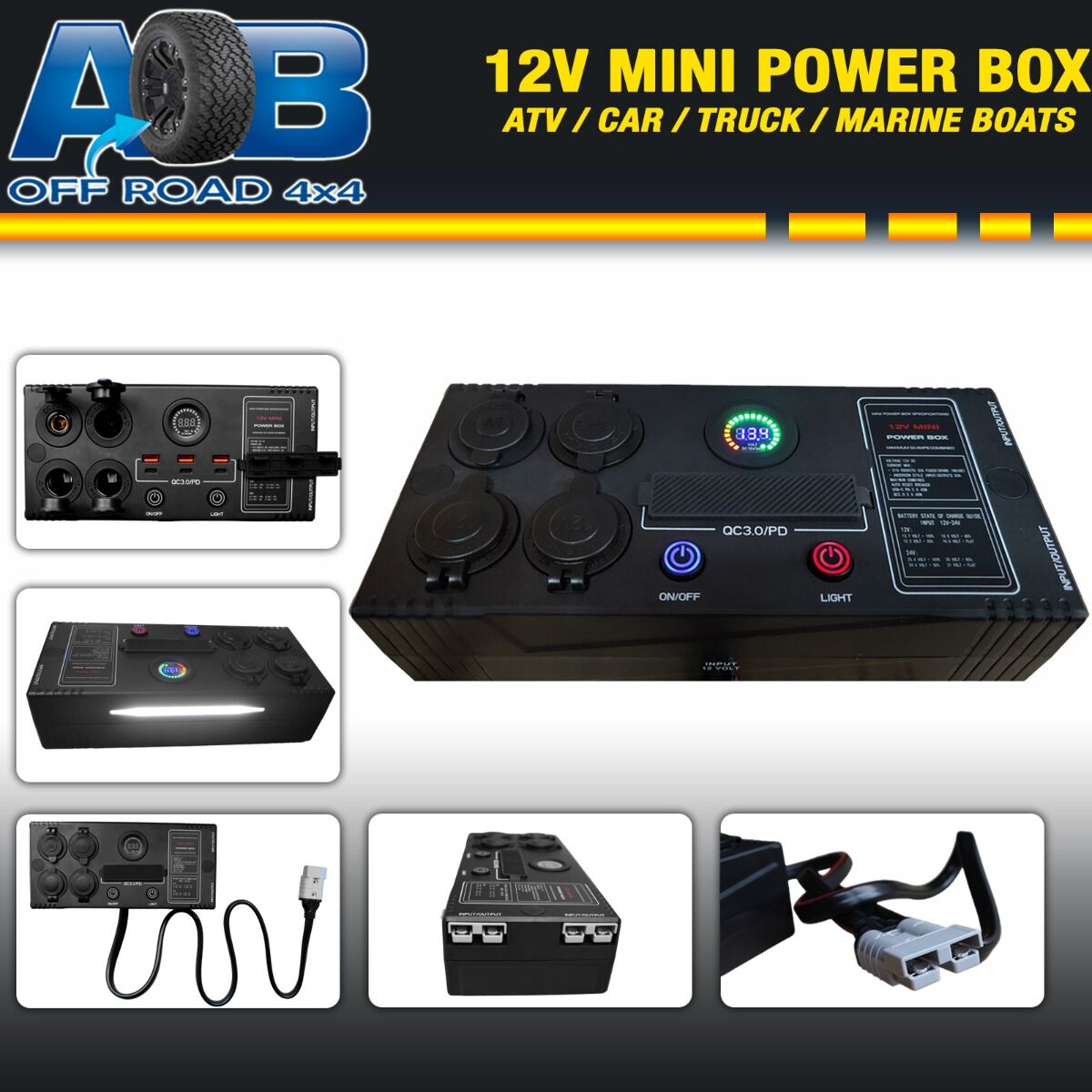

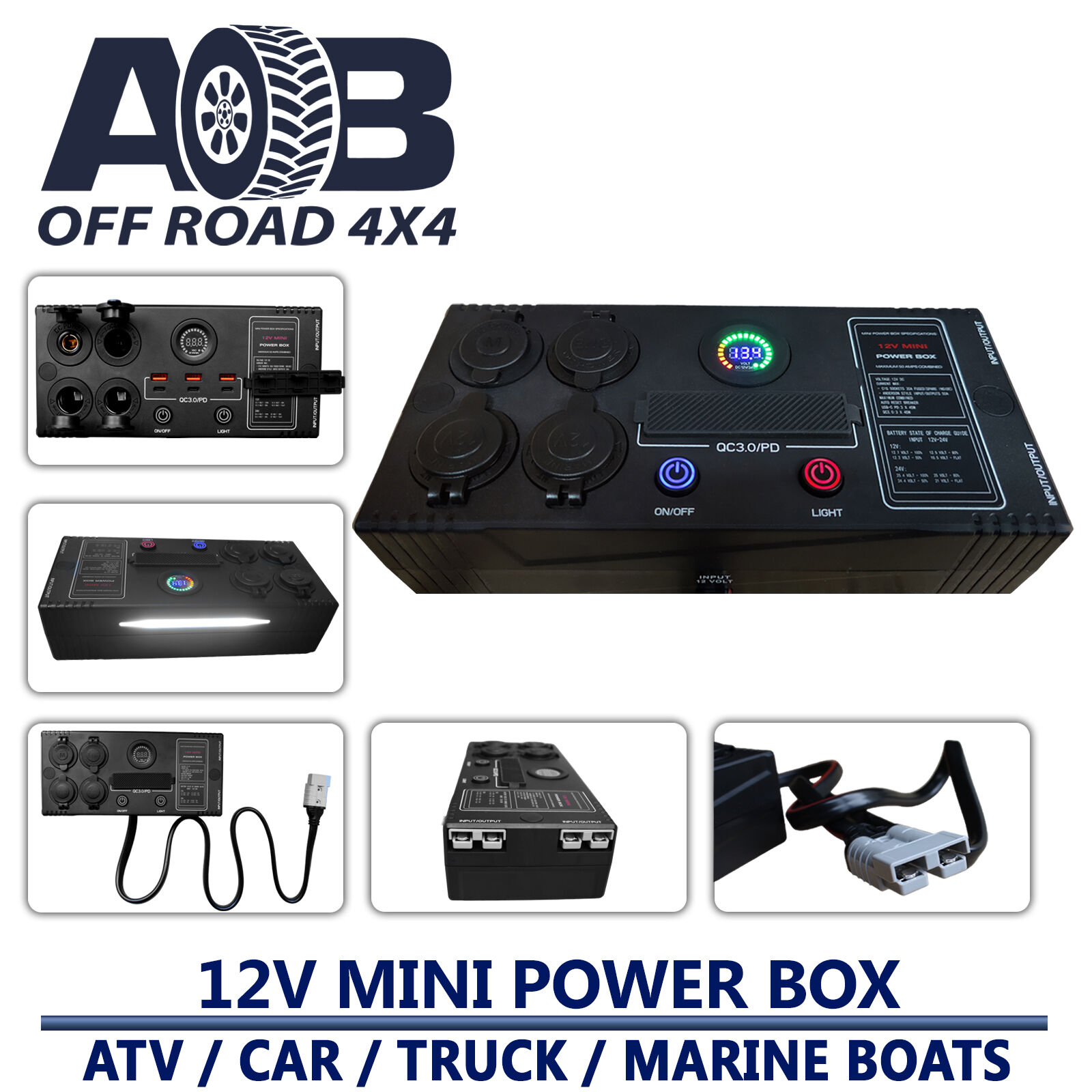

12V Mini Power Box

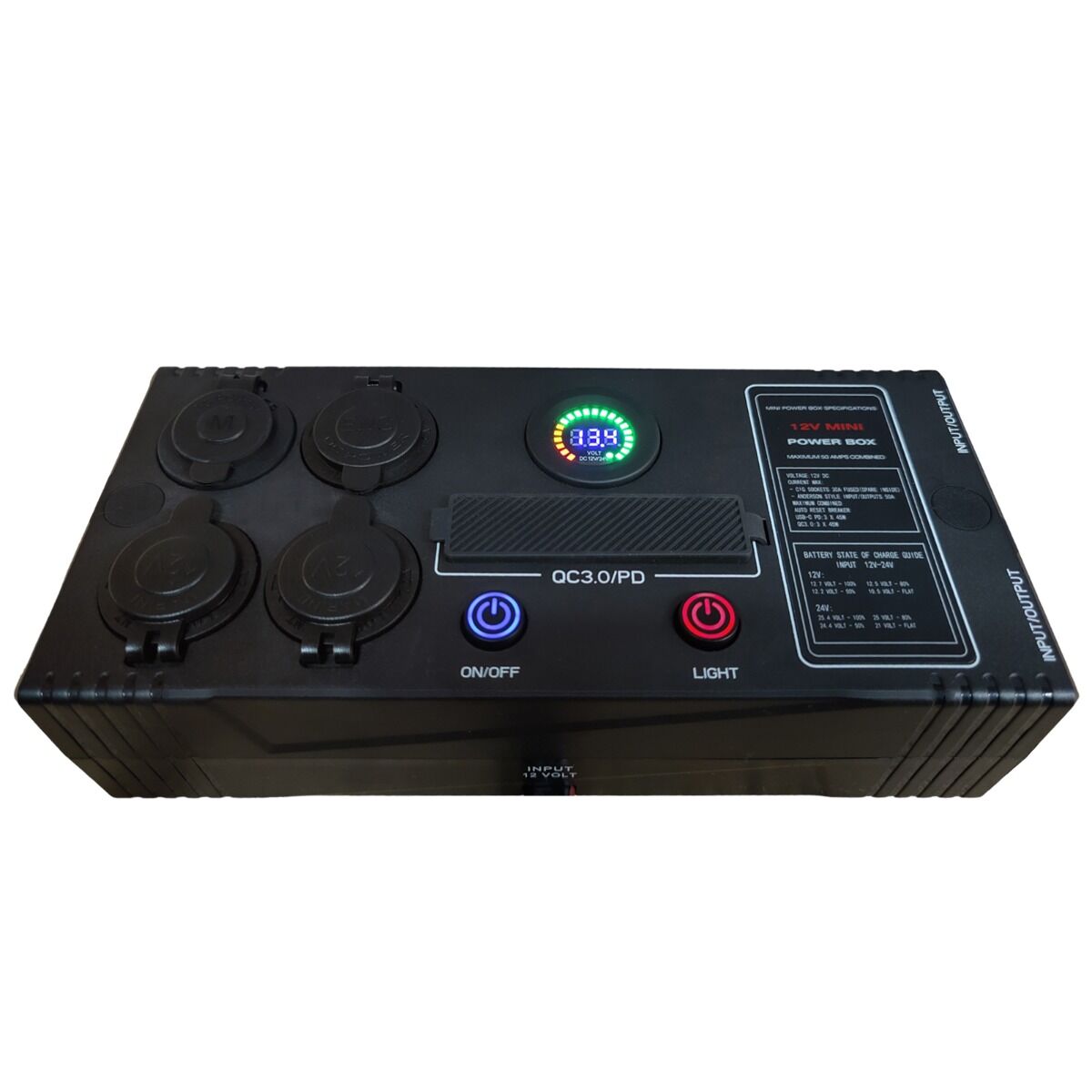

Features and Functions

• This 12V Mini Power Box is a compact low voltage distribution device wih multiple outlets suited to 12 Volt and other low voltage appliances
• Perfect for use when connecting many devices to one 12 volt power source as the multiple sockets allow for easy installation.
• Up to 5 x 12 Volt main devices can be connected and up to 6 x USB devices with a maximum current of 40 amps.

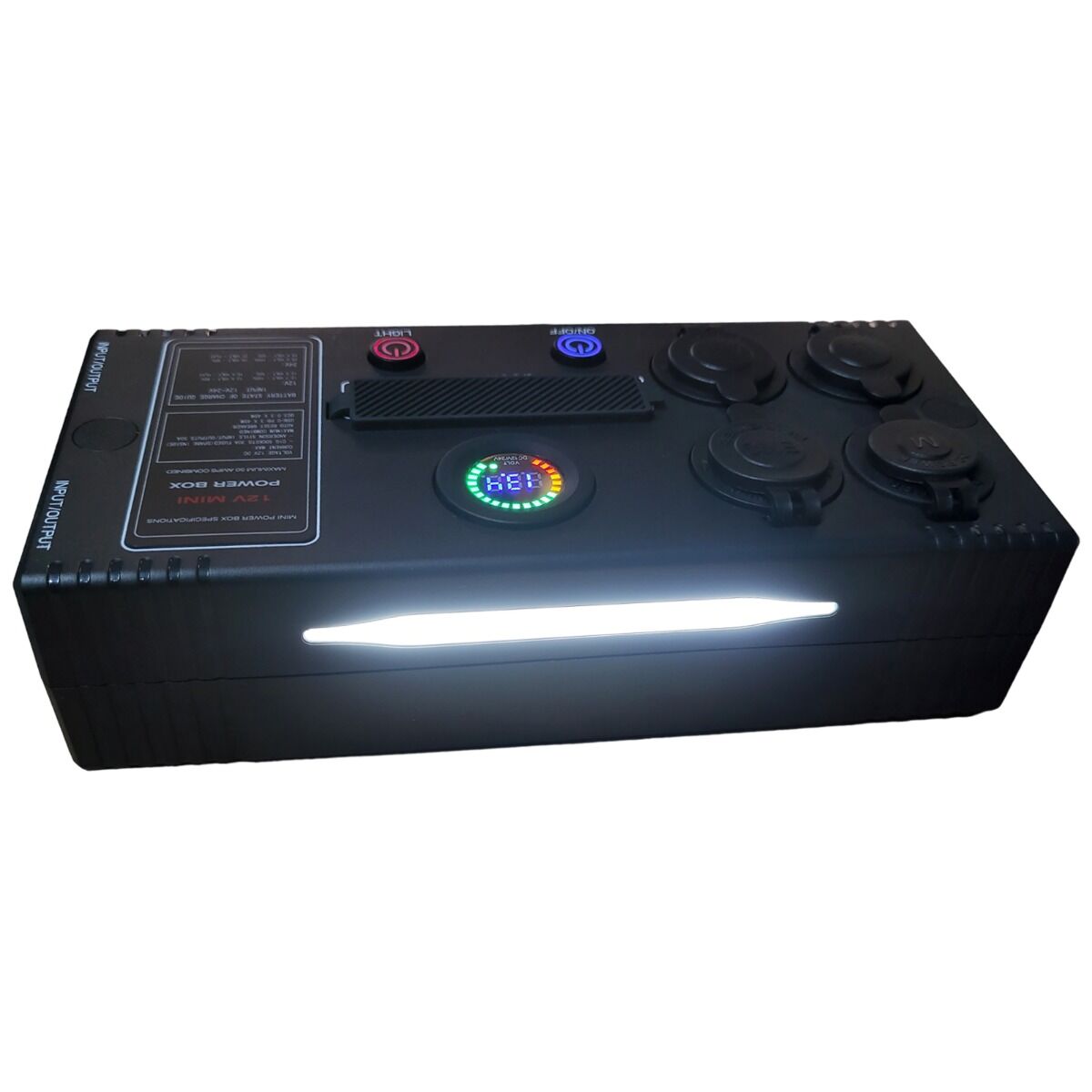

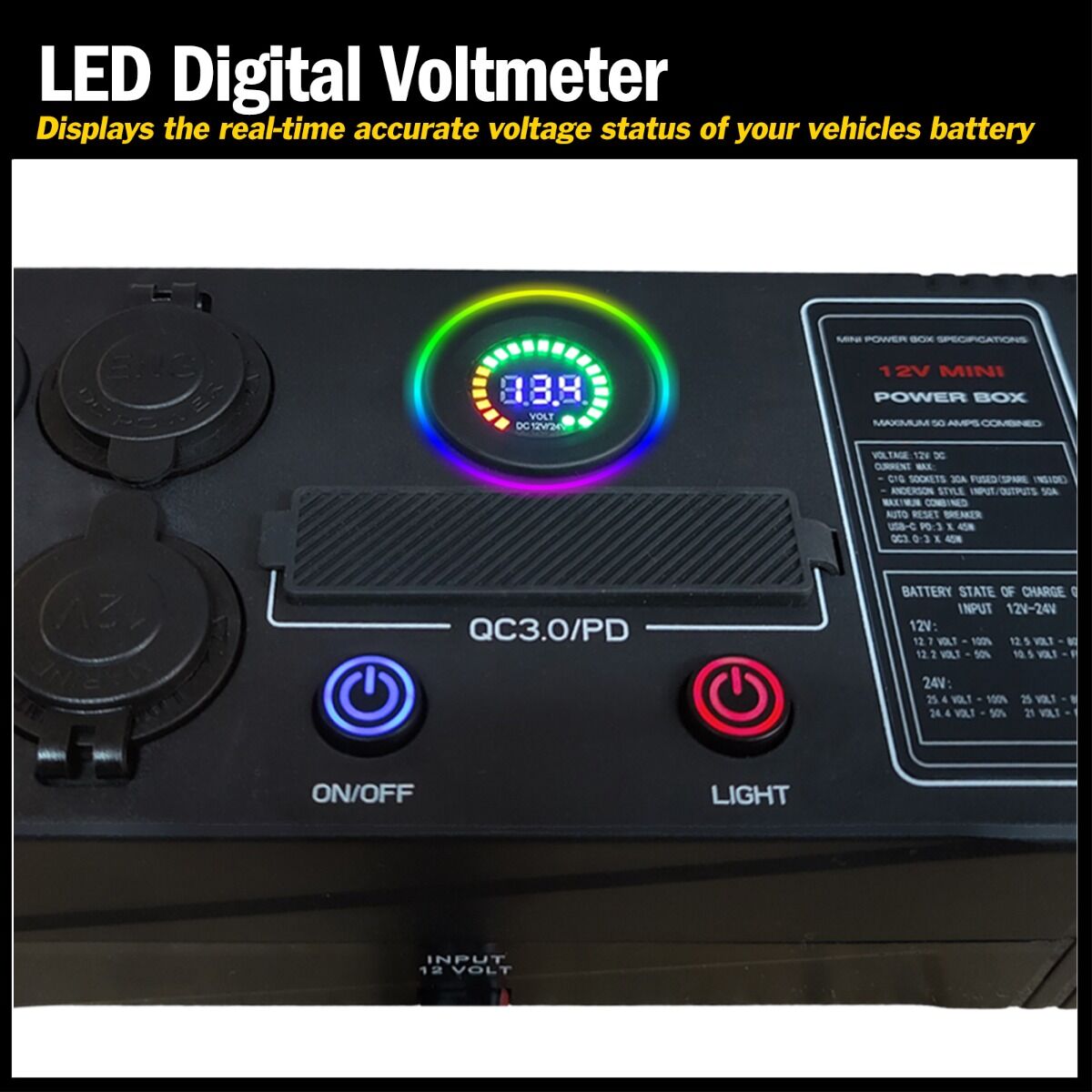

• It has inbuilt voltmeter for battery voltage monitoring and also an integrated LED interior light with dimming function.

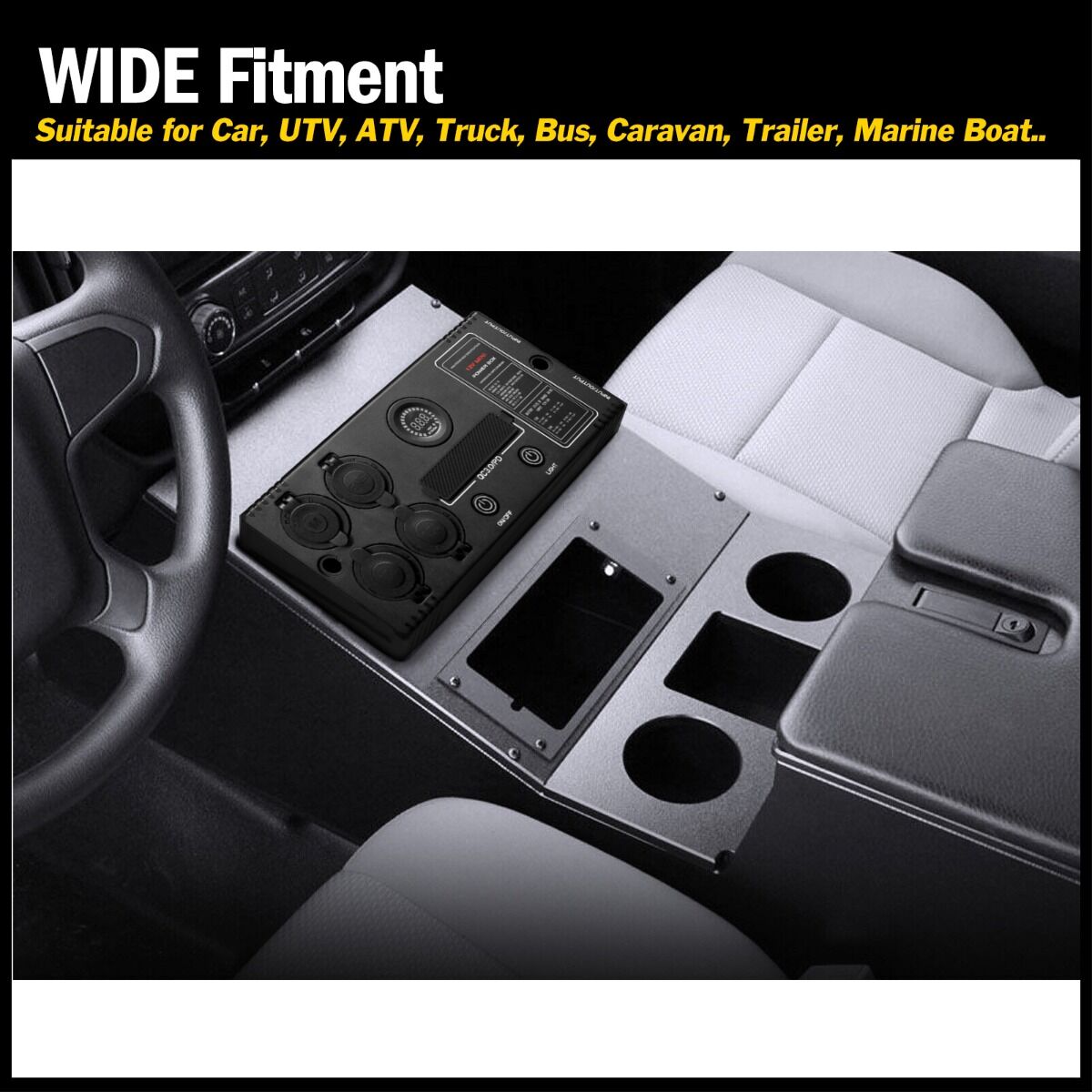

• Can be used as a portable freestanding device or it can be mounted for fixed installation.

Installation

The Mini Power Box may be used free standing for portable use. If how ever you want it permanently mounted follow the following steps:

a) Ensure the installation area is a flat surface and accessibility to the unit is not obstructed.

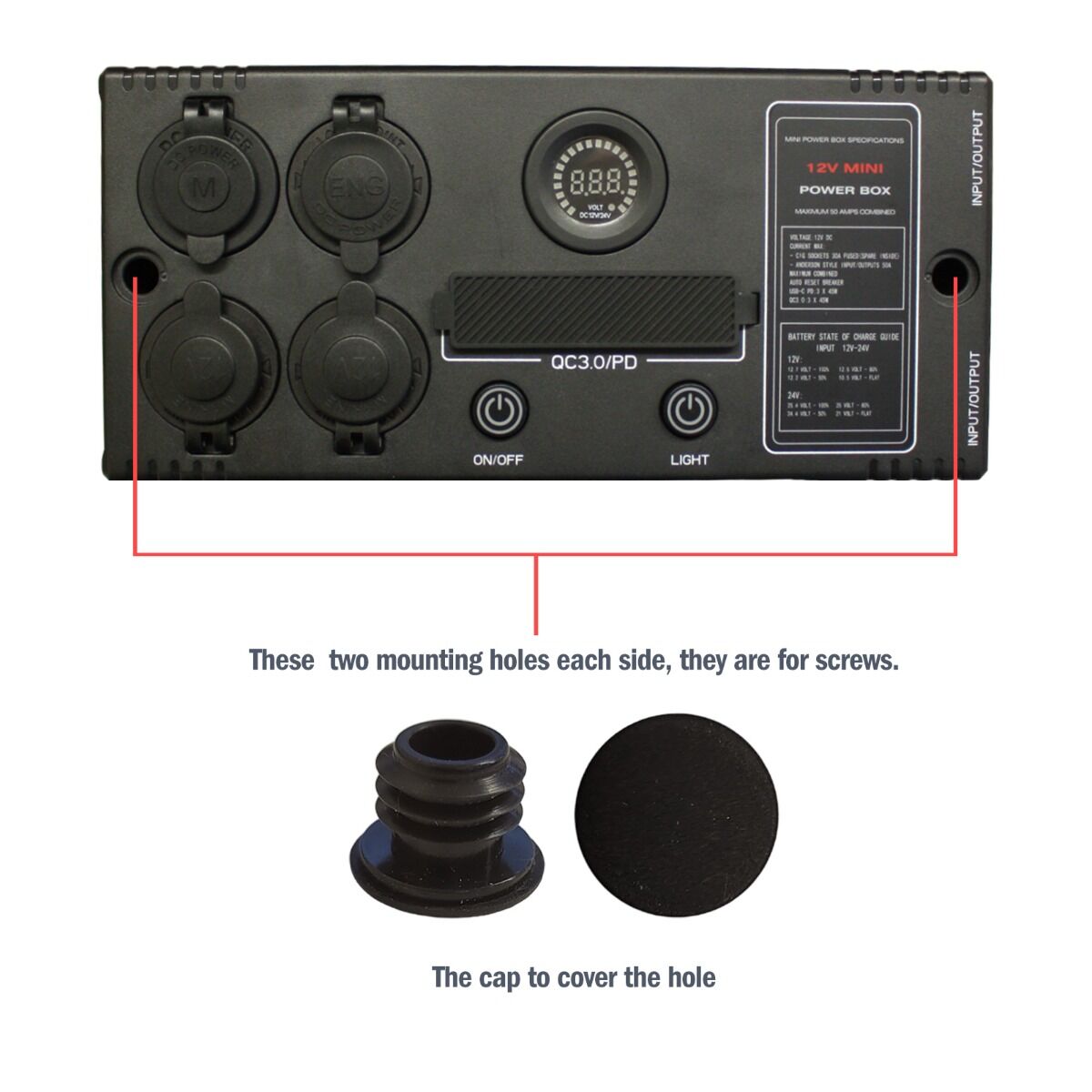

b) Ensuring the unit level is use the screws provided to secure. We recommend predrilling the mounted surface first and fastening the screws by hand screwdriver only.

c) Connect the 12V supply via the input Anderson style connector. This is either a permanent supply from a battery, or it could also be from and Anderson extension cable from a portable battery box when using the unit for portable use. The unit is now ready for use.

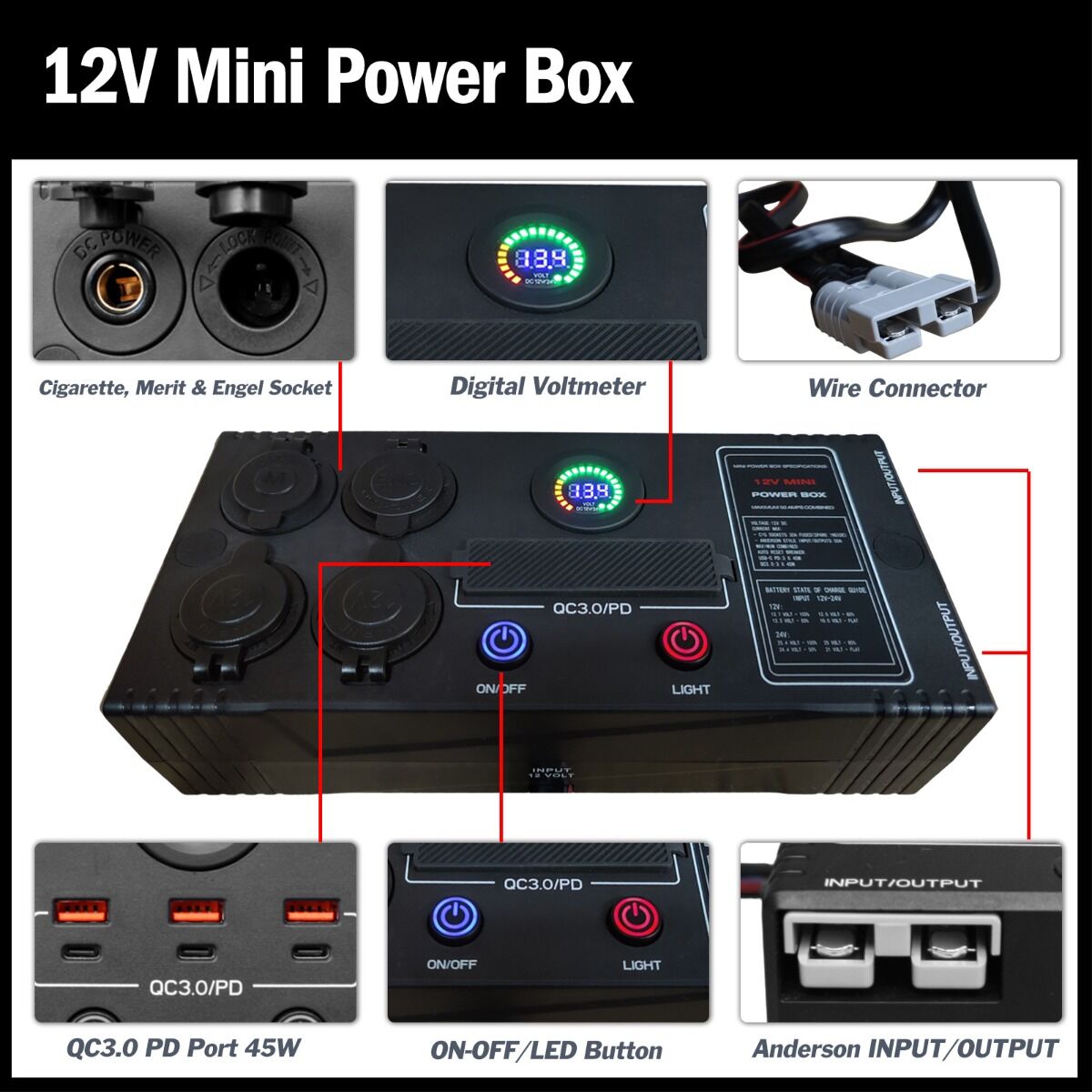

Specifications

• 1 x led light with 3 levels of brightness

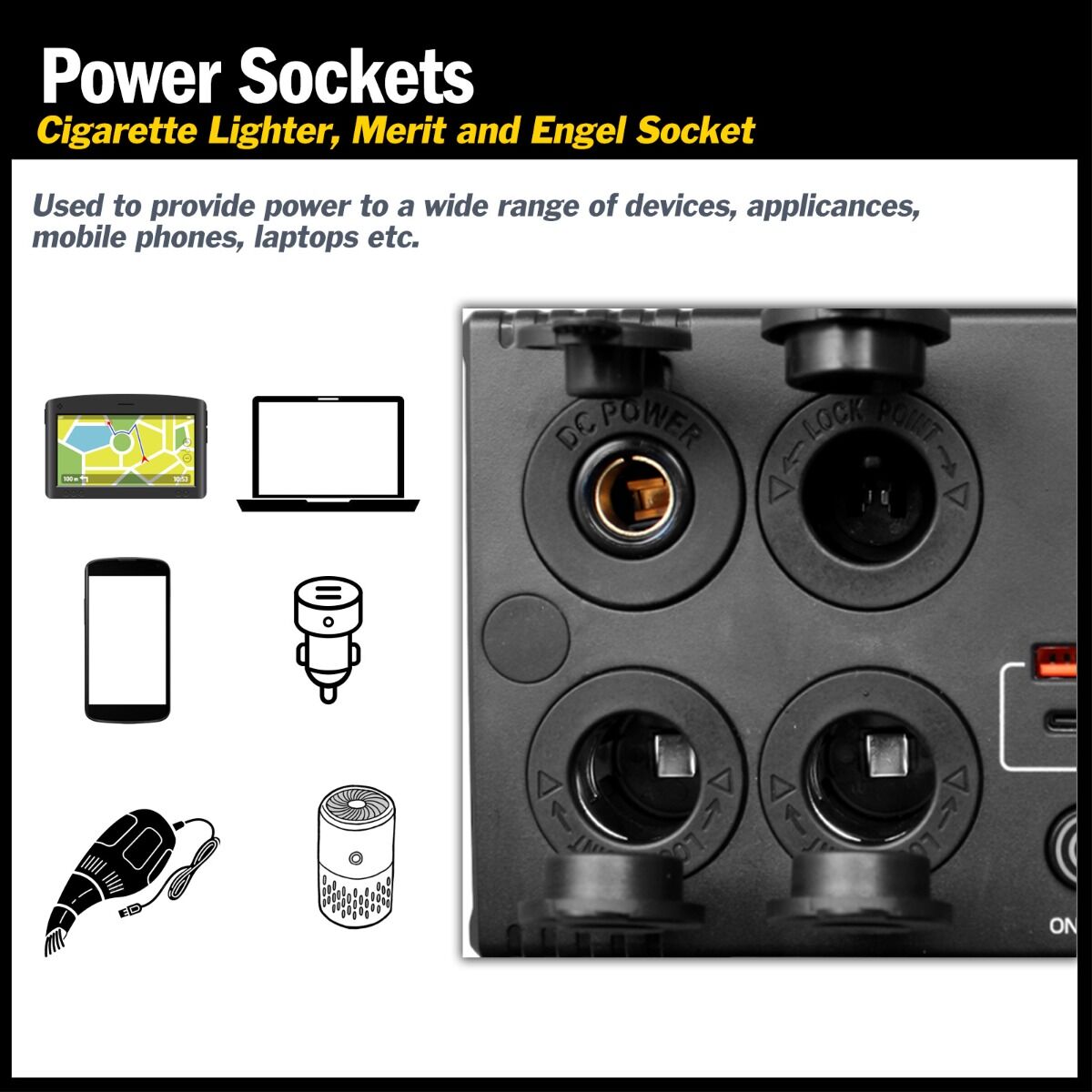

• 1 x engel socket max 10 amps
• 2 x cigarette sockets max 10 amps
• 1 x merit socket max 10 amps

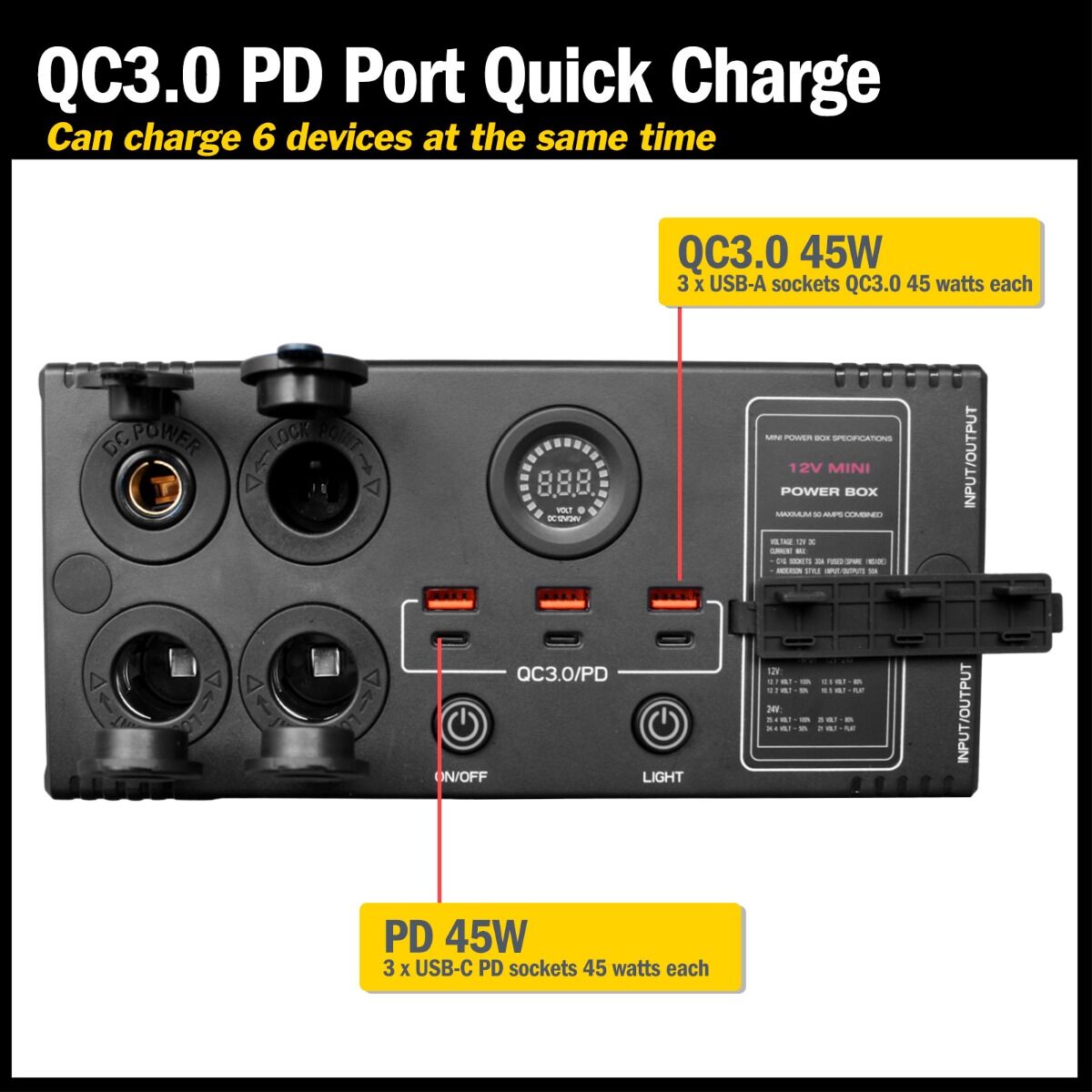

• 3 x USB-A sockets QC3.0 45 watts each
• 3 x USB-C PD sockets 45 watts each
• 1 x 50 amp anderson plug (input only) cable length 1 meter
• 2 x 50 amp anderson plugs (can be used as a input or output)
• 1 x volt meter
• Total output from all sockets must not exceed 40 amps

• Unit dimension : 330mm x 150mm x 80mm
• Voltage: 12V/24V
• Battery State of Charge Guide: based on lead acid batteries (lithium batteries voltmeter will normally show 13.0-13.2 volts from 100% until flat)

  12V:

  • 12.7-13.2 VOLT – 100%
  • 12.5 VOLT – 80%
  • 12.2 VOLT 50%
  • 10.5 VOLT – FLAT

  24V:

  • 25.4 VOLT – 100%
  • 25 VOLT – 80%
  • 12.24.4 VOLT 50%
  • 21 VOLT – FLAT
